Passive House: Pond Views and Privacy

6 min read

An unusual parcel shape leads to a slew of successful Passive House features.

HOTYOffsiteConstruction Take a retiree with big plans for a smaller home, and combine him with a much-maligned piece of property, and you have what has become known as the “Pond View House.”

“The owner was downsizing from a very large house and moving closer to his family to spend more time with his grandchildren,” explains Dan Welch, founder of [bundle] design studio, the South Bellingham, Washington infill project’s architecture and design firm. “He had a desire to build a low environmental impact home that was very comfortable with healthy materials and indoor air quality.”

[bundle]’s portfolio focuses on Passive House and high-performance net-positive energy projects. The customer’s specifications were “perfectly in line with [our] philosophy and existing work,” Welch notes.

From the judges: “This project sits lightly on the earth...it looks like the design team has made great efforts to help the project blend into the surrounding public spaces.”

Here, There, or Anywhere

Project Stats

Name: Pond View House, Bellingham, Washington
Builder: Kota Construction
Architect/Designer: Dan Welch and Zach Jorgensen, [bundle] design studio
Interior Designer: Lori Radder
Photographer: Sheila Say, Sheila Say Photography

The Pond View House seemingly had everything going for it in terms of location—close to city amenities while within walking distance of a forested city park, scenic pond and popular recreational trail—but remained undeveloped for years. Various owners were discouraged by the existing public driveway, which cut diagonally through the site to provide access to an additional five homes.

Due to the constraint of the existing driveway, the site design was split, with the house situated on the east overlooking the park and the shop on the west to provide easy access and privacy from existing homes, according to Welch.

“The owner’s goal was to create a home that allowed for single floor living with additional rooms for guests and family,” he says. “The design takes advantage of the site’s existing downhill slope to the northeast by providing all the primary living spaces on the main floor with a daylight basement, providing additional guests and mechanical space on a reduced footprint.”

Click to view a larger image

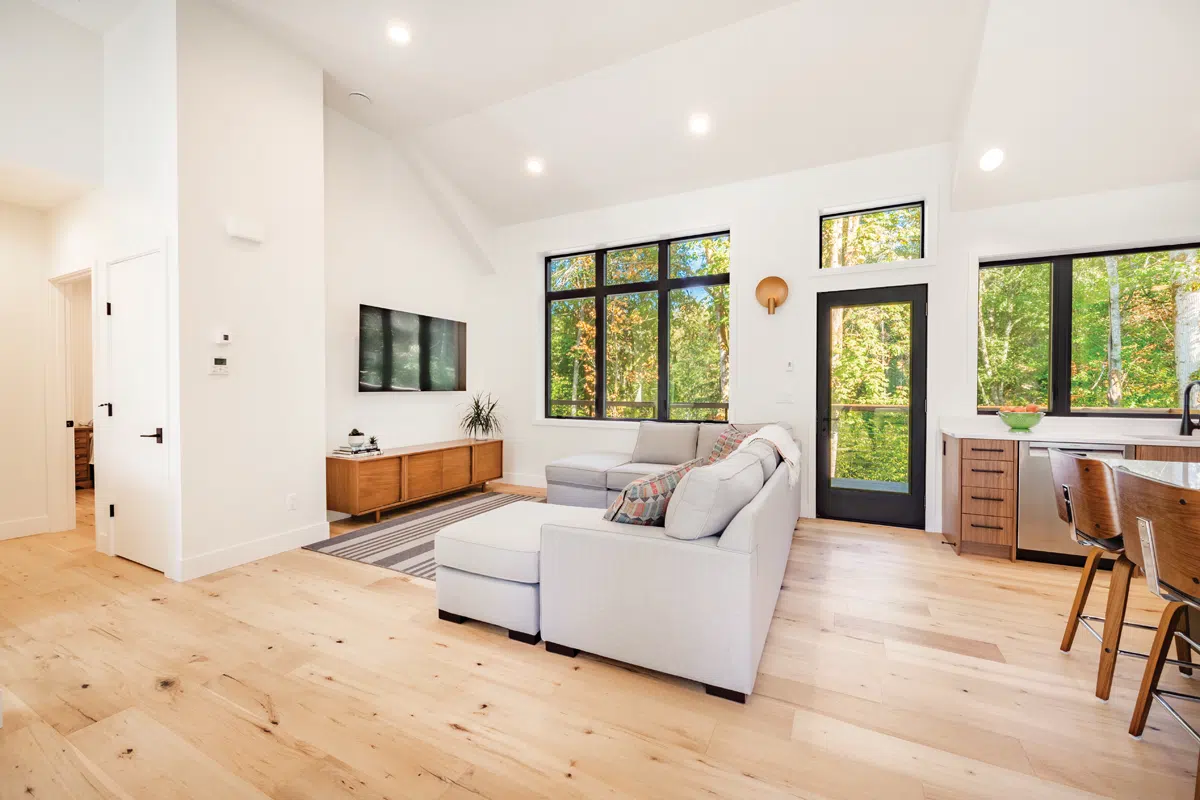

Limited openings to the west reduce intrusive headlights and increased privacy from the public driveway. To the east, the living spaces open to the forest with tall windows, doors, decks, and patios that overlook the pond.

Pond House, Passive Guidelines

Building a home utilizing sustainable construction materials and methods was also a key priority for the owner, Welch notes. The Pond View House uses Passive House principles, including continuous insulation, airtight construction, high-performance windows and doors, thermal bridge-free detailing, and heat recovery ventilation.

Being crafted with simple lines, zero-VOC finishes, Passive House air tightness, and steel siding will ensure the home is durable, comfortable, ages beautifully with time, and has very low operating costs, Welch adds.

The home’s carbon footprint is significantly reduced thanks to all-wood framing made with engineered wood, and trusses for floors and roof systems. Carbon-sequestering cork—a renewable resource that doesn’t require the harvesting of a tree—is used for exterior insulation, while cellulose is for interior cavity insulation.

The two-bedroom home is of modest size, reducing the amount of materials needed, Welch adds.

The house, and an accompanying workshop, are also all electric, thanks to a photovoltaic array that supplies most of the energy needed during the year. The shop’s roof, in particular, is orientated directly south with a slope optimized for maximum solar capture. Building assemblies and features such as an energy-saving HVAC enable the project to actually end up net positive in terms of electricity generated.

Kindness to Mother Nature

Because the new house is directly adjacent to a forested park, the owner wanted to be considerate of the natural setting, Welch notes. Disturbed land was restored with native plants and trees, and incorporates large infiltration trenches that allow the stormwater to return to the forest.

All of these qualities make for a good “how to” lesson, according to Theresa
Gilbride, a building energy efficiency researcher at Pacific Northwest National Laboratory in Richland, Washington, and a judge for Green Builder’s 2023 Green Home of the Year (GHOTY). The Pond View House is the year’s winner in the Off-site Construction category. “The home’s Passive House principles are a great example to other building professionals,” she notes.

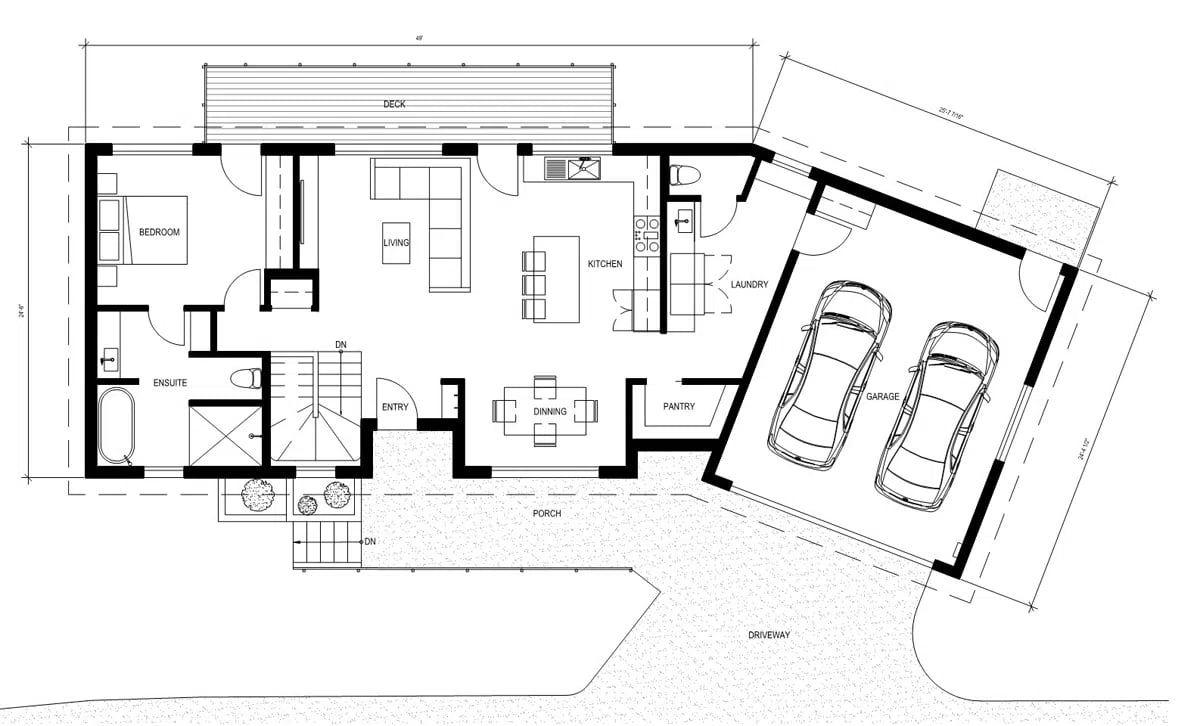

Pond View House plans w_dimensions_1

0123gb_p45

Key Components

Appliances: Bosch

Water Resistive Barrier: Henry Blueskin

Cabinets, Shelves, Millwork: Smith and Vallee

Countertops: Quartz

Decks: Thermory wood decking

Doors and Hardware: Westeck

Electrical: Express Electric

Exterior Finishes: Metal siding, cedar siding, fiber cement siding

Flooring: TMBR Flooring, Big Sur

Garage Doors: Overhead door

HVAC/Ducts: Daikin heat pump

Insulation: Thermacork exterior insulation; Greenfiber cellulose cavity insulation

Lighting: West Elm, CB2, Etsy

Paints and Stains: Benjamin Moore; White Dove

Plumbing/Plumbing Fixtures: Kohler

Renewable Energy Systems (solar, wind, etc.): Barron Heating

Roof: Precision Roofing

Ventilation: Zehnder CA350

Water Heating: Rheem HPWH

Window Coverings: Bali motorized blinds

Windows, Skylights, Patio Doors: Westeck windows

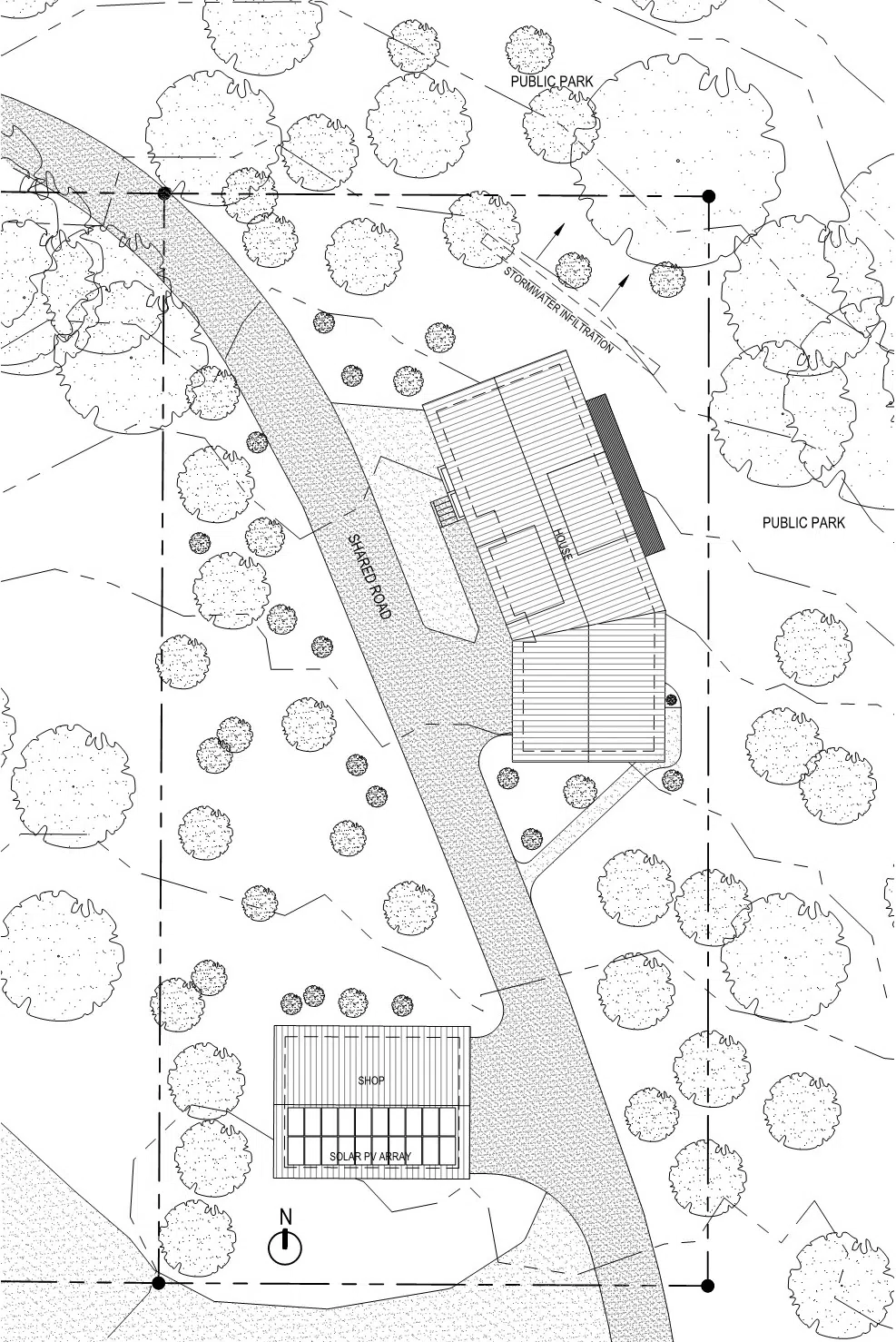

A shared road splits the Pond View House parcel in two, leading to separate locations for the dwelling and a workshop. Credit: [bundle] design studio

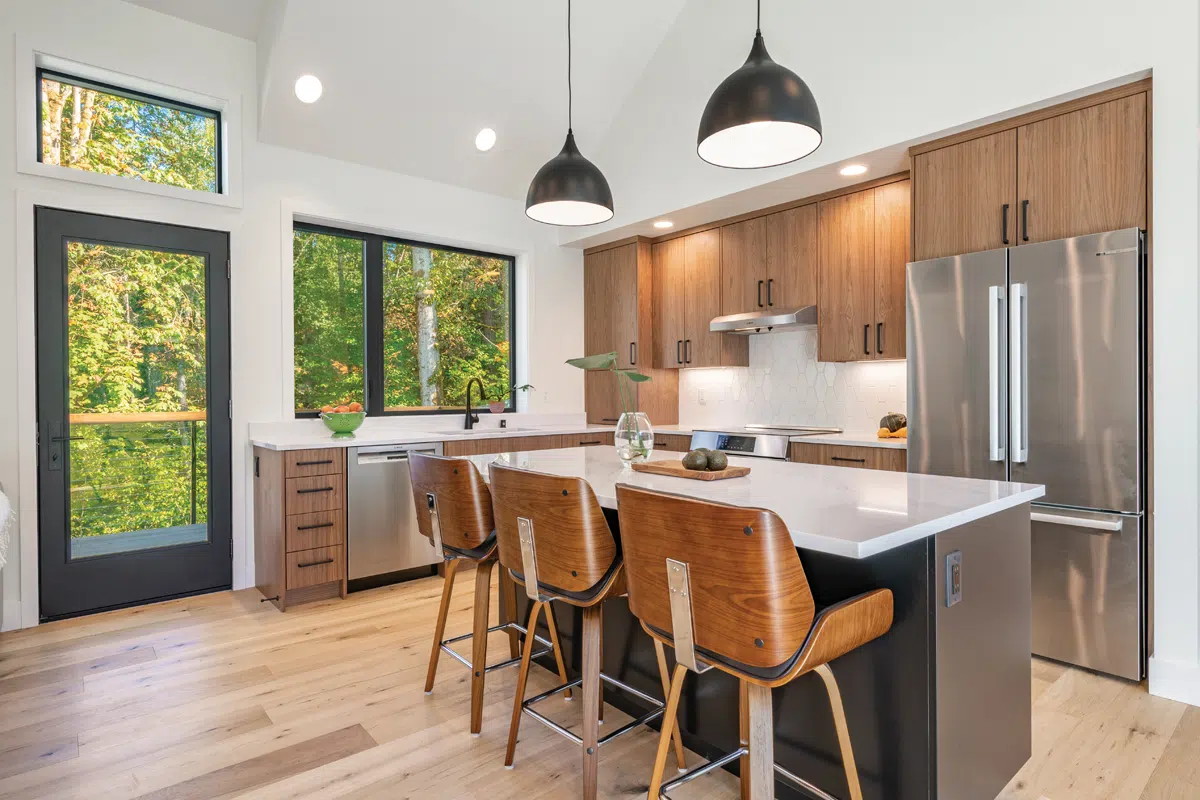

ENERGY STAR-rated appliances, dual-pane windows and non-VOC coated cabinets are sustainable highlights of the kitchen. Credit: Sheila Say/Sheila Say Photography

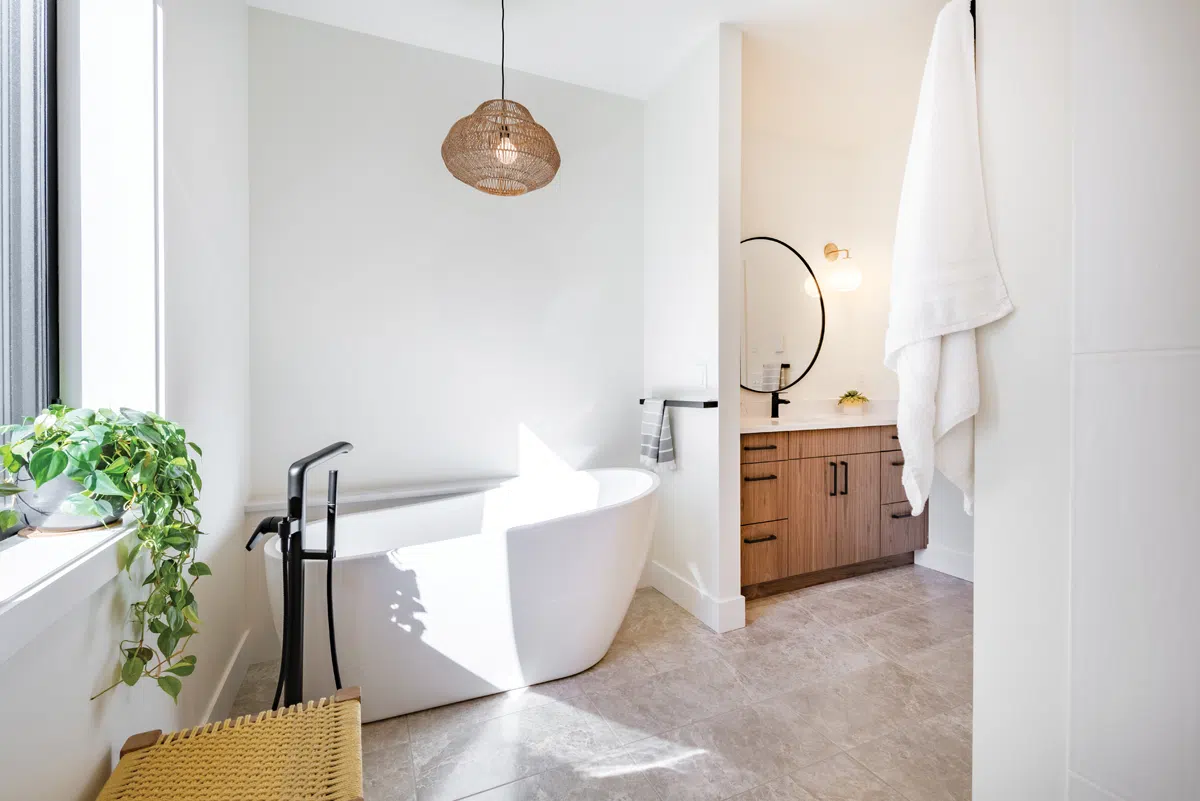

Room with a natural view. Water saving fixtures, and natural lighting and heat, make the home’s bathrooms comfortable and eco-friendly. Credit: Sheila Say/Sheila Say Photography

Wood au naturel. Flooring in the house is made of engineered wood, which is made from scrap product, making it a sustainable mainstay. Credit: Sheila Say/Sheila Say Photography
