Three research-tested details make more room for insulation and a continuous air barrier.
Advanced framing techniques that reduce the amount of framing in stud-framed walls improve their thermal performance. There’s more room for insulation, and thermal bridging—the heat transfer that happens through wood framing and extends from the inside surface to the outside surface of the wall—is reduced. The challenge is coordinating the framing, insulation and air-barrier details before construction. In research recognized by Building America in 2013, the Partnership for Home Innovation (PHI), led by Home Innovation Research Labs, tested three advanced framing techniques that improve the thermal performance of the building enclosure, reduce the cost of energy-efficient construction and simplify the construction process. See the 2013 Building America profile for the original research context.
Continuous drywall passes behind an interior partition in the tested detail. Original Building America research illustration.
Continuous Drywall at Interior Partitions
Drywall typically serves as the interior air barrier for the home’s thermal envelope or building shell. One weak spot is the corners of rooms where sheets of drywall come together; the air seal here relies on the integrity of the tape and mudding. The tested approach carried drywall continuously along the inside of the exterior walls to reduce air leakage at interior partitions. In that detail, interior partitions were offset ¾ to 1 inch from the exterior framing. To stabilize the interior wall framing, walls are anchored to the top plate with flat plate connectors. Drywall is slipped through this gap as it is installed along the interior side of the exterior walls in one continuous path; then, interior walls are drywalled. The drywall sheets along the exterior walls are installed so that seams do not align with room corners.
Rim Joist Window Headers
In two-story homes, the space above the first-floor windows and doors is often composed of solid wood—such as two or three 2×10s or 2×12s—to equal the thickness of the wall. Traditionally, the solid header has been justified to adequately support the building load. In the tested rim-header system, a specifically designed second-floor rim member carried loads over the first-floor openings. This is not a general property of ordinary rim joists. Have the building designer specify the rim header, connections and supporting studs for the opening width, framing arrangement and design loads. The space above the door or window is left open and can be insulated like the rest of the wall. This technique saves time, labor and materials costs, while adding to the overall thermal performance of the wall.
Raised truss heels leave room for insulation over the exterior wall. Original Building America research illustration.
Continuous Sheathing for Raised Heel Trusses
For builders used to building with standard trusses, using raised heel trusses could seem complicated, time consuming and expensive. Concerns about adequate support led builders to install blocking at each rafter bay to hold the trusses in place—a difficult, labor-intensive job. Home Innovation Research Labs tested continuous wood structural panel sheathing extending from the wall up across the raised truss heel. Its bracing and uplift resistance depend on the panel layout, fastening and truss design. Use the engineered or applicable code detail, rather than assuming any taller sheet replaces required blocking. The sheathing layer doubles as a wind baffle, allowing the insulation to fill the space above the outer walls to full height without spilling over into the soffit vents. Air flow is still provided through the space between the roof rafters above the top of the sheathing. The research detail combined several tasks. Whether it reduces labor on another project depends on its design and construction sequence. Ask the supplier and framing contractor to price the specified panel sizes, fastening and labor for the project.

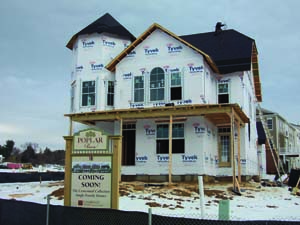

The Winchester/Camberley test house was built in Silver Spring, Maryland, in 2011. Original Building America research illustration.
Winchester/Camberley Homes New Construction Test House The NAHB Research Center partnered with production builder Winchester Homes, Inc. to build a new construction test house, with the historical goal of improving energy efficiency by 30 percent over the Building America B10 benchmark. The strategies included optimized framing, air sealing, insulation and space conditioning system designs that are cost-effective on a production basis. The three-story Victorian-style house was built as a model home in Silver Spring, Maryland in 2011. The original project report stated that a blower door test conducted after finishing yielded an infiltration rate of 1.9 ACH at 50 Pa. Factory-built wall panels consist of 2×6 wood frame, 24” on center, with ½-inch OSB sheathing. Structural rim headers replaced first-floor headers and jack studs; unnecessary blocking, studs and cripples were also eliminated. Second-floor headers were engineered to minimize dimensions to reduce initial cost, reduce thermal bridging and increase wall insulation. Second top plates and a housewrap were installed in the field. Cladding was fiber-cement siding. The continuous drywall method reduced framing air losses. Raised heel trusses with two-foot overhangs accommodated the full depth of insulation and insulation baffles at the eaves, notably at the sloped ceilings of the third floor.

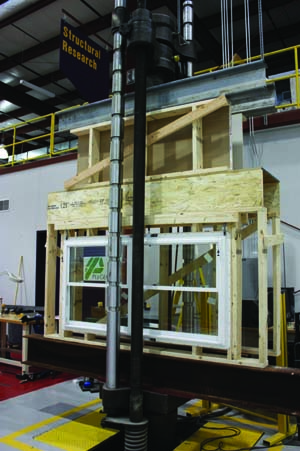

A laboratory assembly used to test the integrated rim header and window operation. Original Building America research illustration.
Testing the Integrated Rim Header The NAHB Research Center, through the Building America program, embarked on an effort to validate design calculations to transfer the design loads via an integrated rim header, without negative effects on the window opening. The evaluation was performed in conjunction with a national builder, K. Hovnanian Homes.
The integrated rim member and supporting wall framing were designed to resist the loads at the first floor level of a 20-foot-wide, two-story home with a center bearing wall and a ground snow load (Pg) of 50 psf. Specimens were tested in a Universal Testing Machine with an automated programmable computer control. Load was applied at an approximate rate of 0.1 inches/min of displacement; at each load level, the target load was held for 5 minutes, so the specimen could be visually inspected and the functionality of the installed windows evaluated. The integrated rim header system successfully limited deflections and maintained window serviceability throughout all tested load levels.
For current construction, use the locally adopted code and the project’s structural and enclosure design. The 2017 construction guide explains the research details and its climate-zone and code-edition limits. Historical test results do not establish the performance of a different house.
