Dedication to good design and quality enhance product selections at the VISION House Austin.

Alan Barley and Peter Pfeiffer, co-owners of Barley|Pfeiffer Architecture in Austin, Texas, are big believers in layering. They start with a deep study of the site they’re working with and design a home that complements the location and their client’s preferences. Next, they layer in sustainable products and systems that will enhance the performance of a well-designed and carefully built home.

VH Austin - top view

The VISION House Austin is being designed with numerous environmental elements in mind, including roofing, windows and appliances. CREDIT: Courtesy of Justin Moore, White Elephant General


Exterior products such as James Hardie fiber cement siding, a metal roof from Fabral, decking from Timbertech, a building envelope system from Henry, a Carlisle company, windows from Andersen, and cutting-edge GE appliances take the VISION House Austin to a new level of performance that will stand up to the intense Texas climate.

Barley and Pfeiffer start with design based on natural principles and time-tested building techniques such as overhangs to create shade and positioning each house appropriately on its site. They also focus on innovations that have made it easier to build a resilient, sustainable, high-performance house.

“We have a number of products that we have experience with that we start with for any project,” says Joel Effland, project manager for the VISION House Austin with Barley|Pfeiffer Architecture. “Then we work with the clients and the builder to make decisions that will keep the budget in check.”

At VISION House Austin, designed by Barley|Pfeiffer Architecture and built in partnership with Green Builder Media for homeowners Robert and Judi George, the architects are working with Justin Moore, owner of White Elephant General Contractors in Austin. Their close collaboration on product choices, starting at the earliest design phase, strengthens each step of construction.

“Technology and new innovative products are great, but everything has to be installed correctly from the beginning with attention to detail or it doesn’t matter,” Moore says. “For example, if you buy the best new HVAC system but you don’t install it right, it can still sweat and cause mold.”

Moore and the architects are dedicated to combining new innovations with their decades of experience to create a home that embraces the natural world and contributes to sustainability.

Synergy From Inside Out and Outside In

While the exterior architecture of the VISION House Austin takes into consideration the breezes and weather patterns of the site, Barley and Pfeiffer choose products that complement the design and add resilience, durability and comfort to the home. The building envelope from Henry includes Blueskin weather barrier insulation and a spray foam insulation to improve performance.

“The weather barrier insulation is easy to install,” Moore says. “So is the flashing from Henry that will seal the house.”

1124gb_p44

Insulation from Henry Company helps protect the VISION House Austin and the garage from water, air and moisture intrusion.


Metal roofs, when installed properly, are by far the most logical roofing system for central Texas, Effland says. They chose Fabral Roofing for the VISION House Austin metal roof.

Barley, Pfeiffer and Moore specified a concealed fastener, “snap-lock” style roofing panel which prevents the typical long-term failure of exposed fastener metal roof, and the need to install mechanical seams.

In addition, they specified a panel with additional ripples running between the ridges, called striations, which make the panels much stronger, reduces the risk of heat-related “oil canning,” and qualifies for a hail resistance discount on homeowners’ insurance.

They chose a thicker, 24-gauge steel to increase strength and longevity, which also allows solar panels to be mounted directly onto the metal roof with an S51 clamp without any additional structural members.

Another important aspect of this metal roof is the finish. “We specified a mixture of aluminum and zinc alloys called Galvalume,” Effland says. “This finish is more durable and corrosion resistant than galvanized metal roofs and does not fade nearly as much as painted finishes.”

However, the most important part of the roofing system is the installation, Effland emphasizes. “We design our metal roofs to be lifted up off the roof deck with 1-by-4 lath, and we ventilate that air cavity from a space between the drip edge and fascia boards,” he says. “This air space, combined with the Galvalume finish, acts as a solar heat radiant barrier and effectively places the entire home under a shading umbrella.”

These combined features form a roof system that will last 50 years or more, compared to the approximately 15 years that a typical composition shingle roof will last, Effland says. The Fabral metal roof is hail resistant, fire resistant, fade resistant, corrosion resistant and energy efficient.

VHTX Fabral Horizon-S-100

Fabral’s metal roof is hail resistant, fire resistant, fade resistant, corrosion resistant and energy efficient. CREDIT: Courtesy of Fabral


Another resilient product that Barley and Pfeiffer frequently choose is cementitious trim and siding. For the VISION House Austin, they chose James Hardie siding, trim and soffits.

“It’s our go-to for exterior applications in most of our home designs,” Effland says. “It’s more durable and requires less maintenance than traditional wood siding, which will fade and rot over time no matter how well it is installed, finished or maintained.”

In addition, James Hardie siding is much more dimensionally and thermally stable than PVC or vinyl sidings, he says. It’s classified as a non-combustible material, which drastically increases a home’s ability to defend against wildfires—which is important in Texas and other locales.

“James Hardie’s thicker Artisan siding is certainly a luxury finish, offering deeper shadow lines in the lap siding, and a cleaner, more-contemporary finish in shiplap,” Effland says. “Additionally, pre-primed Hardie siding products, once painted with a topcoat, shed water away from a home, instead of absorbing water like most stone, brick or stucco veneers do. This reduces the vapor drive into the home, keeping the home dryer and improving indoor air-quality.”

VHTX James Hardie Artisan CROPPED

James Hardie’s thicker Artisan siding reduces vapor entering the home, keeping the inside dryer and improving indoor air quality.


Moore, Barley and Pfeiffer chose Andersen windows for the VISION House Austin.

“The Andersen 100 series windows and doors are a phenomenal value to our clients,” Effland says. “The composite/fiberglass construction offers supreme strength and durability. It is much more thermally stable and UV resistant than vinyl, is immune to potential insect- or moisture-related rot associated with wood windows, and is more energy efficient than a lot of aluminum or steel framed window systems.”

aw18_17709-1200x1000-2

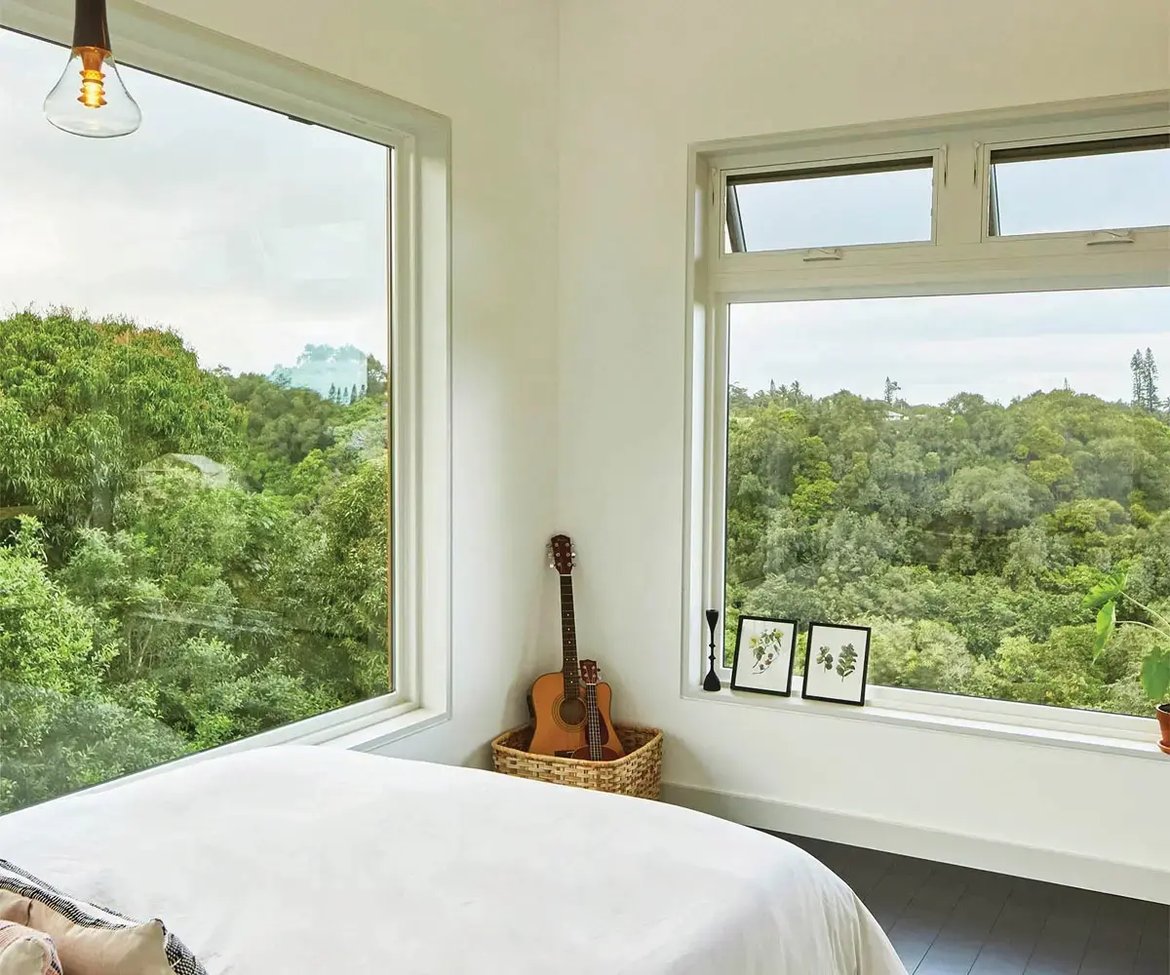

The home uses Andersen composite/fiberglass windows, which are more energy efficient than many aluminum or steel framed window systems. CREDIT: Courtesy


Features and Finishes for a Low-Maintenance Lifestyle

From the beginning, Judi and Robert George were interested in managing the electrical loads in their home, Effland says.

“They wanted a large solar array, battery backup power, electric vehicle charging, and the ability to control and monitor where their electricity would and would not be used in their home during a power outage,” he says. “This is exactly the functionality that the Savant power systems were designed to offer. We are very happy to have them on board as a sponsor for this project.”

VH Austin - SavantPowerSystem

A Savant power system provides the owner with a solar array, battery backup power, electric vehicle charging, and the ability to control and monitor where electricity is and is not used.


GE Appliances and Savant are partnering to create a smart home management system for the VISION House Austin that will track energy use for each appliance and throughout the home, Effland says.

“One of the coolest new products is the GE combined heat pump washer and dryer,” Moore says. “Instead of pumping the moist air outside and then bringing in fresh air, the heat pump dryer converts the moisture back to water and drains it. It’s energy efficient but it also saves space because you can fit an extra cabinet in the laundry room with only one machine.”

1124gb_p45

GE’s combined heat pump washer and dryer are part of a smart home management system for VISION House Austin that will track energy use for each appliance and throughout the home.


In addition to managing their energy use, the homeowners’ lifelong commitment to sustainability means they want the latest technology for energy efficiency.

Trane’s variable speed heat pump, which uses only the electricity needed for a comfortable house based on the weather, will be connected with the Trane ComfortLink II thermostat to automatically calibrate for optimal performance. Automating features simplifies life for the homeowners of the VISION House Austin, who share the goal of enjoying a low-maintenance lifestyle.

VH Austin - trane-customer website ipad

Trane’s ComfortLink II thermostat automatically calibrates the home’s variable speed heat pump for optimal performance.


Another automated system improves the indoor air quality for the home. The Fresh Air Ventilation Control (FAVC) system from Field Controls pairs a motorized damper in a home’s fresh air intake duct with the fan in the HVAC air handler, opening the damper and turning on the fan for the required number of minutes per hour to meet current ventilation requirements. The system also monitors up to four different exhaust fans in the home, crediting their run times toward the required ventilation.

VHTX Field Controls FAVC

The Fresh Air Ventilation Control (FAVC) system from Field Controls monitors up to four different exhaust fans in the home, crediting their run times toward the required ventilation.


“We typically monitor the kitchen ventilation hood and the dryer, as well as the exhaust fan in primary and secondary bathrooms,” Effland says. “Additionally, the FAVC is capable of monitoring the outside air, automatically shutting off the ventilation if it is too hot or too humid. These features greatly reduce the risks associated with over ventilating a home in a hot and humid climate such as ours, lowering the amount of work a home’s HVAC system must do, and it does so without introducing any additional ductwork, fans, compressors or filters.”

Product Selection–Three Checkpoints

When selecting products for the VISION House Austin or any other home, the team focuses on quality, how well systems and products work together and in a specific location, and finances.

“We work with the clients and the builder to keep the budget in check throughout the process and do check-ins at two or three points to make sure we’re on track,” Effland says.

  • The first checkpoint occurs during the preliminary design phase, which typically includes five pages of drawings and four pages of specs.
  • A second checkpoint occurs when the builder—Moore, in this case—reviews the design and estimates costs based on historical data.
  • A third checkpoint—when builders get bids from subcontractors— takes place after the construction drawings and structural engineering are in place.

“If we’re over budget, we re-evaluate and determine the best way to bring the project back in line,” Effland says. “If we’re under budget, we can consider upgrading certain features.”

Tracking costs consistently from the beginning and at several points along the way before construction begins provides an opportunity to avoid “value engineering” a home later in the process or finding that it can’t be built as planned, Barley says.

“We can find quality products at multiple price points,” Effland says. “For example, we can choose all fiberglass windows, wood and fiberglass, or aluminum windows.”

At the VISION House Austin, Andersen 100 Series windows and doors, made with Fibrex material, were chosen for their longevity and ability to stand up to the Texas heat.

Matching preferences with practicality is another important element of product selection.

“Many homeowners prefer wood floors, but we try to steer them toward engineered hardwood floors because they’re extremely durable and more sustainable than traditional hardwood,” Barley says. “They can be glued directly to the foundation or to the concrete floor, or you can put in some more layers of substrates under them to make them a little softer on the feet. But of course, with more material comes more expense, so this has to be matched to the budget.”

Engineered floors can also be easier to install and waste less wood, Moore says. This also keeps the price down. At the VISION House Austin, AHF’s engineered wood flooring products will be installed, along with Crossville Tile’s ceramic and porcelain tile.

“Engineered floors are also healthier because you’re not putting chemicals down on the floor finishes right before clients move in,” Pfeiffer says. “Even if water-based polyurethane is used on hardwood floors that are finished in place, it still stinks. Ideally, you should let it dry and harden for two weeks, but no one ever has time to do that. They move in three days later and they’re basically living in a chemical bath.”

AHF Kodiak Brown

Engineered floors, such as those from AHF, can be easier to install and waste less wood than typical wood flooring.


Balancing Aesthetics and the Best Products

Sometimes, aesthetics can clash with building science. For example, Effland says ultra-modern style doesn’t typically lend itself to being very efficient.

“Floor-to-ceiling glass and zero overhangs are things that immediately take a hit on efficiency and the overall durability of a house,” he says.

Even so, architects can improve a home’s performance with design elements matched with the right technology.

“Sometimes a house needs to be sited with windows facing west because there are good views in that direction,” Barley says. “Or your client loves contemporary houses that are boxy, but we can find ways to reconcile those things.”

For example, a home can be designed with a roof overhang that shades the window in the summertime and lets sunlight in in the wintertime, Pfeiffer says, or with carefully positioned windows for natural ventilation. Choosing the right Andersen windows for the climate is important, too.

“One of the most important things to do is to design with a detached garage, which avoids contributing to heat gain in a house and is better for indoor air quality,” Pfeiffer says. “That keeps all the chemicals from the garage out of the house.”

1124gb_p47

A detached garage avoids heat gain in a house and is better for the main home’s indoor air quality.


“We seal the attic and use spray foam insulation to keep out the heat and humidity, along with dust and pollen that can filter down from the ceiling,” Pfeiffer says. “We elevated the house higher off the ground than usual to prevent dust and bugs from getting in more easily, too.”

VH Austin - Blueskin wall

Henry Company’s building envelope includes Blueskin weather barrier insulation and spray foam insulation to improve performance.


Getting the most from the chosen products for any house starts with paying attention to construction details in the design phase.

“Sometimes builders put the air handler in the garage and then send conditioned air all the way across the house to the primary bedroom,” Pfeiffer says. “We put the air handler towards the center of the house so there’s less resistance to the air flow. That’s why we’re such big believers in doing a comprehensive design from the beginning, including where we want ducts installed in the trusses instead of it being an afterthought.”

VH Austin - wall ducts

Barley|Pfeiffer’s design includes giving priority to where to place air ducts for best effectiveness, instead of making it an afterthought. CREDIT: Courtesy of Justin Moore, White Elephant General Contractors


The combination of smart design and smart products can make sustainability more accessible to more homeowners.

“An important word that doesn’t get emphasized enough in green building is passive,” Pfeiffer says. “For the past 15 years or so, the emphasis in the green building movement has been too much about expensive technology that limits green homes to wealthy people and that require homeowners to do maintenance they may not be willing to do.”

As new innovations and automation become commonly applied and more homes are designed thoughtfully to take advantage of nature, sustainability can become more attainable for every homeowner.

Pre-Gaming Pest Control
1124gb_p48RBuilding science and specific products work together to maintain a healthy environment. Health, particularly focused on indoor air quality, is part of the VISION House Austin from initial planning through construction and beyond. For example, the house is sealed with Termistop’s Termi-Mesh Termite Control System, which keeps ants and termites from entering from the foundation, says Justin Moore, owner of White Elephant General Contractors in Austin.
“Before I insulate, I’ll sprinkle non-toxic bug resistant chemicals to prevent bugs from getting in the house,” Moore says. “This is just one of the smart details that can be done to improve and maintain indoor air quality before the homeowners even move in.”
Over time, defecation from bugs is a top contributor to poor indoor air quality, according to the U.S. Environmental Protection Administration (EPA). Preventing insects from entering the house also reduces the need for pesticides.
Other steps taken to set the house up with good air quality even before the introduction of an ERV include vacuuming all construction dust and debris from inside the wall cavities before they’re sealed, sealing the interface between the foundation and the walls, sealing the attic, and doing a duct blower test on the air conditioning system as well as a door blower test.
“We avoid using glossy paint on interior walls because it allows moisture to collect behind it, just like wallpaper can,” says Joel Effland, project manager for the VISION House Austin. “We also pay careful attention to the exhaust vents and how well they’re ducted. We put them on timers, so they automatically go on and off to filter out bad air and not waste electricity.”
Metal ducting is more durable than flexible ducts, is cleaner and seals better, says Alan Barley, co-owner of Barley|Pfeiffer Architecture in Austin. “It provides better air flow and uses less energy in addition to contributing to better air quality.”




Wildfire Resistance

1124gb_p49

Barley|Pfeiffer Architecture in Austin, Texas, takes a two-pronged approach to building homes that will be resistant to wildfire impacts.
“First, we make sure the landscaping around the house is all Texas-native plants that will thrive in this climate,” says Joel Effland, project manager for the VISION House Austin. “The owners aren’t planning on doing any yardwork, so we can plan a simple fire-resistant site.”
The second approach is to choose exterior materials that are highly resistant to wildfire, such as the metal roof from Fabral and the James Hardie fiber cement siding, which is designed to be resilient for specific climate zones.
“One of the first product choices we made was TimberTech’s PVC decking, which has a Class A fire rating, and is an ignition-resistant material,” Effland says. “The aluminum framing and substructure is noncombustible.”
The non-vented attic can prevent embers from getting sucked into the house, and the soffits and fascia that are composite materials also improve fire resistance, says Alan Barley, co-owner of Barley|Pfeiffer Architecture.
