An Innovation Design Request filed with RESNET is helping this Iowa DOE Zero Energy Ready Home and passive house project acquire a more accurate HERS Index.
By Celeste Yeager Karan, George Sullivan and Bob Chomko
A new building is taking shape at Full Revolution Farm, a “micro eco-farm” located just outside of Des Moines, Iowa. This project, which will include bed-and-breakfast accommodations, is being built to the standards of Passive House International, ENERGY STAR 3.1 and DOE Zero Energy Ready Home (ZERH), which includes the standards of the EPA’s WaterSense and Indoor AirPLUS programs. This ambitious 9,527-square-foot project represents a collaboration between motivated homeowner Celeste Yeager Karan, Bob Chomko, RESNET QAD for the Building Science Institute, and George Sullivan, principal at Eco Smart Building. Since the project broke ground, Sullivan’s company has since been reorganized into Net Zero Analysis & Design Corp. to better reflect the company’s revised focus and capabilities.
A Net-Positive Solar Home
The project at Full Revolution Farm is designed as a passive solar home, but because of its mechanical system, in actuality the entire structure operates as an active solar thermal collector.
The home has no annual heat load, but rather a continuous cooling load throughout the year. This was achieved through an envelope that has no thermal bridging, thorough air-sealing, a significant amount of insulation, strategically placed windows and an advanced mechanical system.
Properly sized and shaded south-facing windows allow for a large amount of solar radiation into the home. Heat is also captured from normal human activity, mechanical equipment and appliance operation. This energy is collected via the multi-zone Mitsubishi CITY MULTI Variable Refrigerant Flow (VRF) geothermal system, which uses two 125-gallon solar thermal domestic hot water tanks as primary heat storage; the mass of the lower-level slab floor functions as secondary heat storage. After both primary and secondary heat storage is met, the CITY MULTI system will use the exterior glycol-filled geothermal field as a heat sink. An earth tube system (open-loop ground-to-air geothermal system) coupled with an energy recovery ventilator (ERV) provides ventilation and primary cooling.
We installed a 12-inch layer of high-density insulation under the basement slab and between the inner and outer walls of the double foundation. Twelve-inch-thick custom designed and engineered panels (CDEPS), manufactured without internal framing members, were applied as a curtain wall to the exterior of the home’s wood frame. Spray foam was used for air-sealing after the CDEPS were installed.
This design allows for net-positive energy production and therefore, a negative HERS rating.
Pushing the Envelope
Building performance modeling is an integral part of the design process, as it helps design professionals simulate design decisions and analyze the strengths and weaknesses of various choices. Building models are used to estimate a preliminary HERS Index, which offers a projects’ decision-makers better tools for cost/benefit analysis.
When we sat down at the dining room table in 2010 to begin the design, we had no idea how difficult it would be to get a HERS rating that accurately matched the performance of the house. There is no suitable group of mechanisms in most approved software programs to model a house that uses solar thermal gains and internal heat exchange for nearly 100 percent of its heating and supplies its cooling needs with an ERV/earth tube system. After discovering the limitations of the RESNET-approved modeling programs, we tried to work around them. We sought out more obscure software, contacted manufacturers for help and wrote our own in-house models for domestic water supply systems, cold water sprinkler systems and the earth tube system, which is based on actual data we collected. Finally, we were ready to submit an Innovative Design Request (IDR) to RESNET and ask for the house to be assigned a HERS Index that reflects actual calculations.
Why File an IDR?
As energy codes evolve, homes are built to higher efficiency standards. We are discovering many points of energy consumption that were not previously considered significant enough to quantify and include in the Rated Features of a Home. As homes’ overall energy use is reduced, the previously “insignificant” energy use now comprises a significant percentage of the homes’ overall energy consumption. In addition, new building technologies and innovative systems have emerged that are not yet assigned inputs in the RESNET-approved building models.
The Innovative Design Request (IDR) process is an attempt to refine the HERS Index where new technologies, design innovation and features of energy consumption previously were not quantified as a rated feature of the home.
An IDR must be submitted by “an approved RESNET-accredited quality assurance provider who is listed in good standing in the National RESNET Registry.” Net Zero Analysis & Design Corp., a RESNET-accredited Quality Assurance Provider, and Building Science Institute Inc., our RESNET quality assurance and training provider, submitted the IDR for Full Revolution Farm.
We looked at several of the major components that were and were not covered in the RESNET Standard:
Live cold water sprinkler system
WaterSense-designed domestic hot water system
WaterSense-designed domestic cold water system
Windows installed in the insulation layer with over-insulation on the window frame
Solar thermal greenhouse
ERV model in REM/Rate
Earth tube system model
Variable refrigerant flow (VRF) mechanical and domestic hot water system model
All of the above systems were found to be contributing factors in reducing the HERS Index of the home.

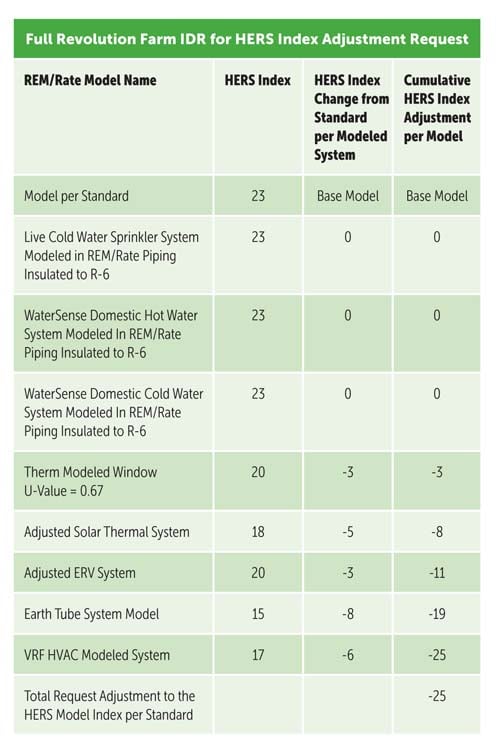

The IDR process could adjust Full Revolution Farm’s HERS Index from 23 to -2 before the addition of photovoltaics.
EPA CORRECTION:The chart above shows that a ENERGY STAR certified home earns a HERS index of 85. This is actually incorrect. Under the current ENERGY STAR program requirements, there is no single HERS index associated with a certified home. Instead, the ENERGY STAR HERS index target is determined for each individual certified home. However, for homes certified in most states, the target tends to fall between a HERS index of 65 and 75. In states with the more stringent 2012 or 2015 IECC, the target tends to fall between 55 and 65. Both of these ranges are significantly more stringent than the value of 85 indicated.
Custom Models
The IDR process is set up to allow for unique building elements or systems that reduce the project’s energy use to be recognized in the home’s HERS Index. When analyzing Full Revolution Farm, we looked at all of the building systems compared to the RESNET Standard for rated features of the home, DOE ZERH, ENERGY STAR 3.1, Passive House International Standard, WaterSense, Indoor airPLUS and local building code requirements. The modeling of Full Revolution Farm incorporated THERM models, EnergyPro models, REM/Rate models, “Manual J” heating and cooling load calculations and proprietary models that we developed in-house.
We reviewed local building code for systems that are required and modeled their energy impact to ensure we met the Passive House Standard. The modeled impacts were then analyzed to mitigate any increase in energy use over the Passive House Institute Standard.
We then reviewed the RESNET Standard for rated features of the home and the RESNET-approved modeling software against the Passive House International Standard and the Passive House Planning Package (PHPP) model to identify differences between the two standards in the way they calculated energy use and balance. The comparison led us to a number of differences. We discovered that an IDR would be necessary to account for the previously mentioned eight systems, because they were not covered in the RESNET Standards or in RESNET-approved modeling software.
We also discovered that, although several of the home’s systems are included in modeling software as rated features of the home, applicable modeling inputs for the systems were not available, and using pre-set inputs resulted in an obviously skewed HERS Index.
Innovative Systems and Uncharted Territory
Each of the eight systems required different modeling strategies to calculate the loads of the system or the reduction in energy use. The REM/Rate model was then adjusted to account for the load or energy use reduction.
Domestic Water Systems The domestic hot and cold water systems are normally not accounted for when calculating energy use in a building. We discovered that there is actually quite a large energy loss associated with them, and if that energy loss is added to the HERS Index, it has a significant negative impact on the rating. If all water pipes are insulated to R-6, however, there is no negative impact on the HERS Index in cold climates.
Window Installed U-Values Window installation has a major effect on the labeled U-value of the window. Windows installed in contact with exterior building finishes such as brick, for example, will have a U-value of 1.0, regardless of the stated value from the manufacturer. The project’s windows are wood-framed argon-filled triple pane with a stated window U-value of 0.177. By using an innovative window installation technique that we developed, the window’s stated U-value was decreased to 0.067—in other words, it was cut in half. Windows are installed mid-wall per Passive House Standards and then over-insulated to thermally break the frames from the exterior. THERM model results were reviewed by Passive House International for accuracy. This window installation method decreased the HERS Index score by 3 points.
Solar Thermal Collector Full Revolution Farm has a solar thermal greenhouse which is conditioned by a Mitsubishi air-to-water head. This was modeled as a solar thermal vacuum tube, per manufacturer specifications, for sizing the vacuum tube collector to the two 125-gallon solar thermal DHW tanks. This design was reviewed by a solar thermal vacuum tube manufacturer, who also suggested an adjustment based on heating degree days to reflect the actual performance of the Mitsubishi air-to-water head in the space. The adjusted solar thermal system was modeled in REM/Rate and the HERS Index decreased by 5 points.
ERV System Impact We asked the ERV manufacturer UltimateAir to review the ERV energy input into REM/Rate for their RecoupAerator 200DX. The modeled performance in REM/Rate did not match the manufacturer’s performance curves. The manufacturer suggested a calculation that would correct the inaccuracy of the performance. We performed the calculations and adjusted the energy inputs in the REM/Rate model. The adjusted ERV system was modeled in REM/Rate and the HERS Index decreased 3 points.
Earth Tube System Model The project has an open-loop air-to-soil geothermal system before the ERV; this system heats or cools intake air to 55° F. The modeling of the ERV/earth tube system was reviewed by the ERV manufacturer UltimateAir, which has a number of these system in the field, and they have approved the calculations and energy impacts. Our proprietary earth tube system model was modeled in REM/Rate and the HERS Index decreased 8 points.
Variable Refrigerant Flow (VRF) HVAC-Modeled System Neither REM/Rate nor EnergyGauge have the ability to model VRF mechanical systems. Mitsubishi Electric Company recommended that the system be modeled in EnergyPro to determine an accurate system performance in the modeled project building. Mitsubishi Electric Company reviewed the EnergyPro model for accurate VRF input and function, and found that their equipment is correctly modeled in the Full Revolution Farm EnergyPro model. The only exception is that the domestic hot water system cannot be modeled in any of the current energy modeling software.
The EnergyPro model revealed that the building has a negative heating load. The building’s as-built shading features were input into the Manual J model, which was uploaded into both models (REM/Rate and EnergyPro) for this example and comparison. Next, the energy use of the VRF system, as modeled in the EnergyPro model, was used to adjust the REM/Rate model. When the VRF HVAC system was modeled in REM/Rate with the adjusted values from the EnergyPro model, the HERS Index decreased 6 points.
Impact and Next Steps
The overall impact of our analysis was a 25-point decrease in the project’s HERS Index. The HERS Index of this project is negative without using photovoltaic or small wind (5 kW systems) for onsite power generation (see Chart). There are a number of additional systems in this project which, once analyzed, are likely to lower the HERS Index even further.
But an approved IDR has a greater impact than adjusting one project’s HERS Index; it allows us to adjust the HERS Index of other projects that use any of the eight systems that are outlined in it. The IDR allows us more tools to accurately model low-energy projects in general.
It includes a request for three measures:
“As-installed windows” vs. NFRC ratings
Earth tube pre-heater installed with ERV
The Mitsubishi ground-source heat pump with variable refrigerant flow
Once an IDR is submitted to RESNET, the committee has six weeks to review all of the models and supporting paperwork and to respond to the request. During that time, they may ask questions and request additional supporting documents. The current set of eight systems that we have reviewed all have an impact on the RESNET standard for the rated feature of the home and on the current set of RESNET-approved models. We will be submitting these items to the RESNET Standards Committee to allow passive homes and zero-energy-ready homes to be properly modeled and assigned correct HERS Indexes.
We are in the final steps of preparing several other innovative design requests. To date, there has not been a detailed analysis of a similar project submitted as an IDR to RESNET. In fact, since 2013, only seven IDRs have been submitted, and two of those submitted were not approved. The time commitment of hundreds of man-hours required to thoroughly investigate building modeling issues is often an impediment to teams who have valid concerns about the accuracy of a building’s HERS rating.
Progress on Full Revolution Farm can be followed on the project blog.
