2019 Green Home of the Year Award Winner: Better with Bamboo
This clever, compact Hawaiian bungalow has a tough side.
When a client asks David Sands to build a bamboo bungalow, it’s a source of joy for him. Sands’ company, Bamboo Living, specializes in housing made from the island’s fastest-growing and most-durable plant. But one request carried more pride than the others. One of Sands’ own employees wanted one of the stylish tiny shacks as a new home to celebrate her return to the Big Island of Hawaii after 12 years on the mainland.
Name: Tiny Bamboo Bungalow, Kea’au, Hawaii
Architect/Designer: Bamboo Living
Builder: Bamboo Living
Photographer: Andrew Richard Harare
The employee, Bamboo Living’s sales manager, “wanted to live simply in a dwelling that mirrored the beauty and elegance of nature nestled within the tropical landscape of her youth,” says Sands, the company’s co-founder and chief architect. The simplicity comes in a tiny size: The bungalow is a mere 352 square feet on the inside, the smallest dwelling allowed by the local building department.
For almost a quarter century, Bamboo Living has made a name for itself by designing and building the first and only structures to use International Code Council (ICC-ES)-approved bamboo. The company calls bamboo construction “green building at its best,” as it aids in the fight against climate change by saving trees and by removing carbon dioxide from the atmosphere, and bamboo stores C02 faster than other trees, thanks to its fast growth rate.
The prefabricated bamboo elements include steel connectors at the joints, that are secured on site with a system of through-bolts. With this structural system, Bamboo Living buildings have withstood multiple hurricanes with winds up to 185 mph.

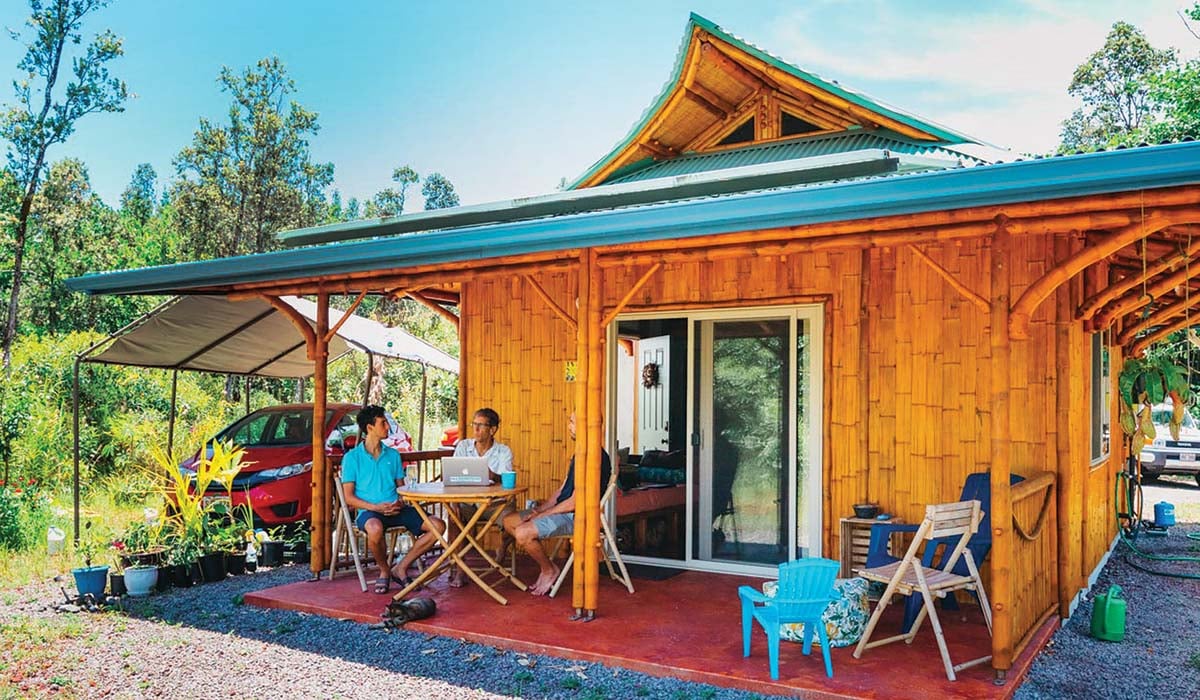

Nicknamed “The Tiny Bamboo Bungalow,” the structure was built with a flying gable roofline, a high ceiling with exposed bamboo trusses, and a lanai with bamboo poles and pickets that blended into the outdoors. The bamboo components of the structure, which include the wall panels, roof structure and porch elements, were produced at Bamboo Living’s factory in Vietnam. After being shipped to Hawaii, a construction crew of six assembled the bamboo home package in just one day.
The Tiny Bamboo Bungalow operates completely off-grid. A 6,500-gallon rainwater catchment tank stores and supplies the water. Eight photovoltaic panels capture the power of the sun, and the energy is stored in Blue Ion lithium iron phosphate batteries by Blue Planet Energy. The house is essentially off-grid ready, with propane-powered range and water heater, and no HVAC system. The home has a carbon-negative footprint, both in its construction phase as well as in its built state, generating more power than it consumes.
Meanwhile, the bungalow’s owner says she felt personally inspired to add to the bamboo’s beauty by including other natural materials such as mango and koa hardwoods for the kitchen countertops; choosing paint, tiles and a stained concrete floor with earthy hues; and displaying nature-centric art. She adds that she treasures the calm, tranquil space, and that the artisan-quality bamboo joinery “makes [me] feel like [I’m] living inside a handmade piece of furniture.”
Sands believes bamboo could one day be the thing that takes the state of Hawaii carbon neutral. The plant’s fast growth, he says, would easily make for a constant, easily accessed building material.
Alternative Building Systems: Structural bamboo panel system
Appliances: Samsung 30-inch, 5.8-cubic-feet Single Oven Gas Range; Vissani 9.9-cubic-foot Top Freezer Refrigerator
Caulks and Sealants: DAP Dynaflex 230
Countertops: Mango wood kitchen countertops (epoxy finish) with Koa face frames
Decks: Bamboo roof, woven bamboo ceiling, bamboo railings and bamboo pickets; stamped concrete with broadcast colors
Doors and Hardware: Masonite; Kwikset Powerbolt touchpad electronic deadbolt
Electrical: 6-kWh Blue Ion lithium iron phosphate off-grid energy storage (Blue Planet Energy)
Exterior Finishes: Split bamboo siding
Fire Protection: Bamboo poles meet requirements of Class A Fire Rating
Flooring: Stained cream polish concrete
Furniture: Hammock chairs that retract to the ceiling, built-in daybed, mobile kitchen island made from tropical hardwoods, bamboo ladder
Landscaping: Majority of lot left in its natural state with ‘ōhi‘a lehua trees, bamboo orchids and autograph trees; landscaping includes variety of tropical fruit trees
Lighting: 100 percent LED
Paints and Stains: Sherwin-Williams Harmony Interior Acrylic Latex Paint (zero VOC formula), Cetol 23 Plus RE Wood Finish
Plumbing/Plumbing Fixtures: Flojet 24-V DC with 2.1-gal pressure tank, American Standard stainless steel double-basin kitchen sink, Moen Adler Shower Faucet, Style Selections single sink vanity
Renewable Energy Systems (Solar, Wind, Etc.): 6-kWh Blue Ion lithium iron phosphate off-grid energy storage; 8 SolarWorld 350-watt photovoltaic panels
Roof: HPM corrugated metal roofing
Specialty Products: Handmade copper rain chains
Structural Components: Structural bamboo scissor trusses, bamboo cross-brace shear wall panels, bamboo porch system with structural columns and beams
Ventilation: Screened windows at roof peaks for natural ventilation
Water Heating: Takagi 140,000 BTU Propane Tankless Water Heater (T-KJr2-OS-P)
Water Management (indoor/outdoor): Rainwater catchment system (6,500 gal)
Windows, Skylights, Patio Doors: Ply Gem windows and sliding glass door
