Reclaimed Design

Posted by Green Builder Staff

Aug 4, 2014 4:35:00 PM

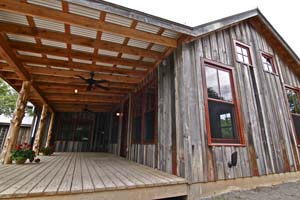

 WHEN THE OWNERS of this 1,015-square-foot weekend lake cabin explained their dream to builder Don Ferrier, they told him they wanted the house to look like it had been there for 100 years. What they got is a net-zero gem that is currently the greenest house in Texas, per the Green Built Texas certification program.

The home uses reclaimed and sensitively chosen products to blend harmoniously with the natural surroundings. The HERS 30 house gets to net zero through the wind power as a renewable energy source. Its siting, which  takes advantage of a 50’ Oak and five 30’ Crepe Myrtles and the deep overhangs reduce solar heat gain. The house offers plenty of natural ventilation and daylighting, which also reduces energy loads.

To provide the requested century-old aesthetics, Ferrier integrated 85-year-old deconstructed barn siding, 100-year-old deconstructed tongue and groove wood subfloor from a chicken coop for interior wood floors, and 150-year-old timbers from a deconstructed timber frame barn.

While the reclaimed look of the house is attractive, it’s how it was put together that is important to the home’s performance. “We increased the size of the west side porch for better sun shading,” Ferrier notes. “We still have west windows but with a 12’ porch instead of a 6’ or 8’ to delay the sun from coming through the windows.”

“The number one rule in hot summer climates is to keep the sun out of the house,” Ferrier reminds. Equally important is to make the home super tight. “You can have great insulation, but if the house leaks, so what?”

Ferrier credits a good building-design team and the owner for this successful project: “The owners understood the investment [in sustainable features] and thought the return was worth it in terms of health and financial investment. They see that value is not best price per square foot.”

  • The home is constructed of 6 1/2” SIP walls and 10 1/4” SIP roof.A Galvalume metal roof with vent space underneath serves as a “cool roof.” and Zo-E-Shield 5 Weathershield windows keep the elements out.

  • All of the kitchen appliances are Energy Star–qualified, the lighting is CFL and LED, and the cabinets are formaldehyde free.

  • The flooring is reclaimed wood from a chicken coop subfloor, and the beams and trim are made from deconsructed barn siding and beams. The small footprint helped the home get to net-zero energy.

© 2016, Green Builder Media. All rights reserved. This article is the exclusive property of Green Builder Media. If you would like to reprint this content, you are free to extract a short excerpt (no more than 1/4th of the total article), as long as you 1. credit the author, and 2. include a live link back to the original post on our site. Please contact a member of our editorial staff if you need more information.
Have an idea for a guest blog for Green Builder Media? Click here to become a blogger.

Topics: net-zero energy, standing seam metal roof, salvaged materials, single-family
